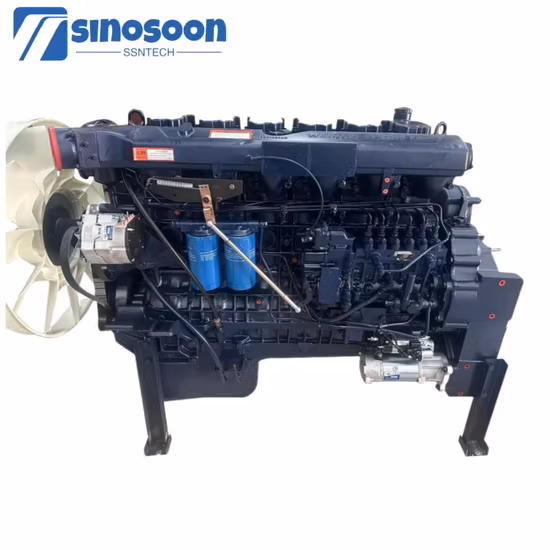

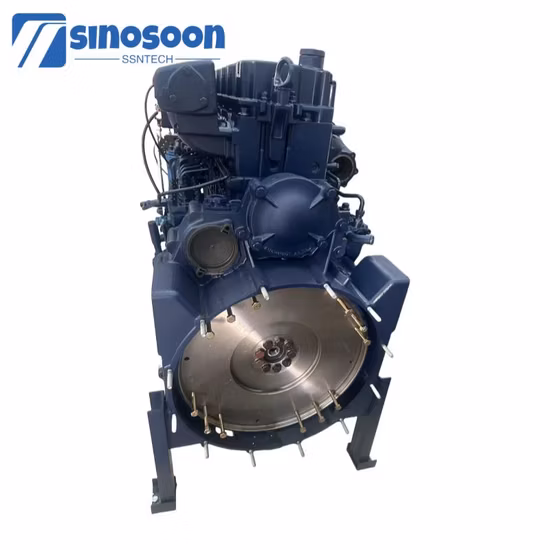

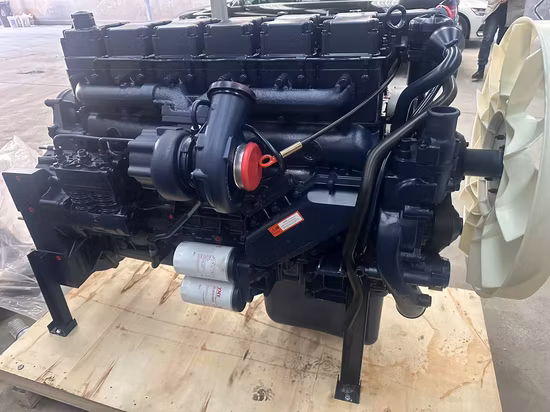

Light Fishing Boat Weichai Diesel Marine Engine with Wp12c350
Basic Info.
| Model NO. | WP12C350-15 |
| Speed | High Speed |
| Cooling Cylinder | Water-Cooled |
| Intake Pressure Impulse | Supercharged |
| Piston Movement | Rotary |
| Fuel | Diesel |
| Number of Strokes | Four-Stroke |
| Cylinder Arrangement Form | L |
| Number of Cylinders | 6-Cylinder |
| Type | Combustion Engine |
| Color | Customer Designation |
| Transport Package | Wooden Box |
| Specification | 1695 x 858 x 1385 mm |
| Trademark | Weichai |
| Origin | Shandong |
| HS Code | 840810000 |
| Production Capacity | 1000sets/Month |
Packaging & Delivery
Package Size 1695.00cm * 858.00cm * 1385.00cm Package Gross Weight 1200.000kgProduct Description
Product Description
WP12/WP13C500-18 series marine diesel engines based on Landking national WP12 series diesel engine which Weichai owned independent intellectual property rights, and focus on use characteristics and configuration requirements of marine power, adopt design concepts to optimize and design special energy saving and environment protection diesel engine for marine, and is the ideal power for inland shipping, fishing and public boat.
| Type | Four-stroke, water-cooled, straight row, dry-type cylinder liner | ||
| Intake mode | Turbocharged , Intercooled | Idling | 600±30 r/min |
| Number of cylinders | 6 | Bore X Stroke | 126×155 mm/127x165mm |
| Displacement | 11.596 L/12.54L | Rotation direction of crankshaft | clockwise |
| Fuel oil consumption | 192g/kW·h | Start mode | Electric start |
| Lub oil consumption | 0.5g/kW·h | Smoke intensity | ≤ 1.0 Rb |
| Emission standard | IMO TIER II | Overhaul period | 12000 h |
| Series | Model | Rated power | Speed (rmp) | Oil supply mode |
| WP12 | WP12C350-15 | 258/350 | 1500 | Mechanical pump |
| WP12C400-18 | 295/400 | 1800 | Mechanical pump | |
| WP12C450-21 | 330/450 | 2100 | Mechanical pump | |
| WP12C500-21 | 368/500 | 2100 | Electronically controlled | |
| WP12C550-21 | 405/550 | 2100 | Electronically controlled | |
| WP13 | WP13C450-18 | 330/450 | 1800 | Mechanical pump |
| WP13C500-18 | 400/500 | 1800 | Mechanical pump |
ADVANCE 300 - 3,00:1
MEDIUM/HEAVY DUTY GEARBOX
| Reference number | A-300-3,00 |
| Brand | Advance |
| Model | 300 |
| Ratio | 3:1 |
| Power | 594 HP @ 1800 RPM |
| Max. Power | 825 HP @ 2500 RPM |
| RPM Range | 1000-2500 |
| Rated propeller thrust | 50 kn |
| N/n | 0,33 hp/rpm |
| Sae housing | Without/sae-0/sae-1 |
| Controls | Mechanical/ electrical |
| Pto | Available |
| Note | If using flexible couping, rate will rise 8% |
| Coupling size | 18 /16 /14 inch |
| Coupling type | Rubber block drive, with alu. ring/(high) flexible coupling |
DIMENSIONS
| Vertical offset | 264 mm |
| LxWxH | 638x870x864 mm |
| Net. weight | 740 kg |
AVAILABLE ARRANGEMENTS
| Ratio | 1,87:1 | 2,04:1 | 2,54:1 | 3:1 | 3,53:1 | 4,1:1 | 4,47:1 | 4,61:1 | 4,94:1 | 5,44:1 |
| Rate | 0,35 hp/rpm | 0,33 hp/rpm | 0,30 hp/rpm | 0,25 hp/rpm | 0,20 hp/rpm | 0,17 hp/rpm | ||||
Marine propeller
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
*Warranty Period: One year or 1200 hours use.
| Packaging | |
| Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
Our Company
We can provide:WEICHAISales of Chinese marine engines and gearboxes, generator sets, pump units, providing modification, upgrades, consulting servicesProducts China marine engine parts and engineering machinery parts. Products include: Sinotruk HOWO, Weichai Power, SHANTUI, serviceProvide cargo warehousing, packaging, transportation and export agency servicesAgency procurement, inspection and inspection agency
weifang haichuan power Co., LtdContaction Person: ceci lee
